PokéDeck + Custom OS
A hackable, rechargeable pocket-sized device powered by the Orpheus Pico! And a custom firmware built for it! This time, going to be working on getting the firmware to work on the Orpheus Pico!
Followers
krunch
Check their project out: Raspberry Pi Tinker HAT
Ayo
Whoops! Looks like they don't have a project yet. Maybe ask them to start one?
cskartikey
Check their project out: The Journey
ayaangrover
Check their projects out: Lumen, Obsidian One
ILikeMice
Check their project out: EP-01 finale
Neon
Check their projects out: Hacker news checker, Market , Artophage, Slack - Zeon
Swayam Sahoo
Whoops! Looks like they don't have a project yet. Maybe ask them to start one?
Cyao
Check their project out: Icepi Zero - Raspberry Pi Zero FPGA Equivalent
Praveenkushinpi
Check their project out: ZenZ
Lukas
Check their projects out: 40%ish split keyboard Case & Code, Update my Website!!!
manni
Check their projects out: Mannuino, My personal website, Mouse
Waddle_Penguin
Check their project out: Star Wars Sabbac Website
Robility
Check their project out: Pico Pad
dave9123
Check their project out: Lenie
krn
Check their project out: Inky; rpi camera but in an awesome case
qqqqm
Check their project out: Slack Music Bot
Emre Kadir
Whoops! Looks like they don't have a project yet. Maybe ask them to start one?
Shree
Whoops! Looks like they don't have a project yet. Maybe ask them to start one?
Andre
Whoops! Looks like they don't have a project yet. Maybe ask them to start one?
Neya
Check their project out: Random number generator
Ship Your Project
HOLD UP
By shipping your project, you're marking it as complete and it'll enter matchmaking. However, you will NOT be able to edit it anymore.
Timeline

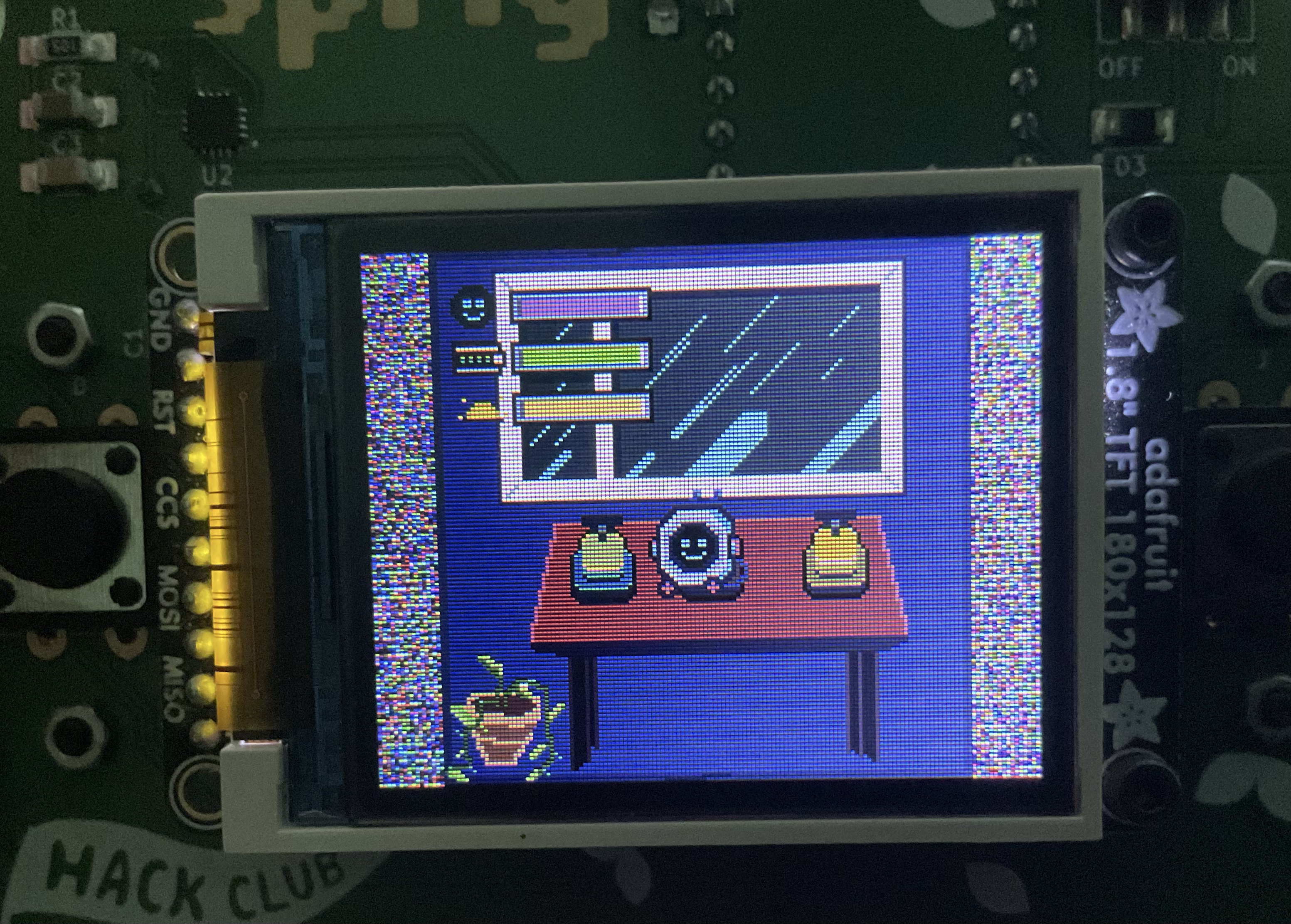

Made the backgrounds of the happiness bar, day-night bar, and battery bar transparent!
Also fixed writing to and reading from a file, but removed it for now because it refreshes the screen again and again and doesn't let other inputs register!
PS: tried to upload a video/image as an attachment multiple times, but finally gave up :heavysob:
So CDN instead: https://sleeping.wtf/R2x3_ETFwipkJriVP3T8Y.png :peefest:
Made the breakout bricks, balls, and charging station sprites backgrounds transparent!
The reprogramming of the brick part was a bit challenging, but I got it to work.
Made all the button sprites backgrounds transparent!
Made the background of the Hackamon idle, jumping, and charging sprites transparent.
Used GIMP, filled the background of the sprites with pink, and exported them as 8-bit indexed bmp files with pink at index 0. And then made the colour at index 0 transparent in code!
Fixed Hackamon game screens!!
Had to reprogram some parts to be understandable by CircuitPython and remove Pygame fully!!
Got the hackamon movement to work on the pet screen!
It was a bug related to file read and write.
Got transparency to work on a sprite using the bitmap and adafruit_imageload library!!
Will have to replace all of the sprite loading code later on :peefest:

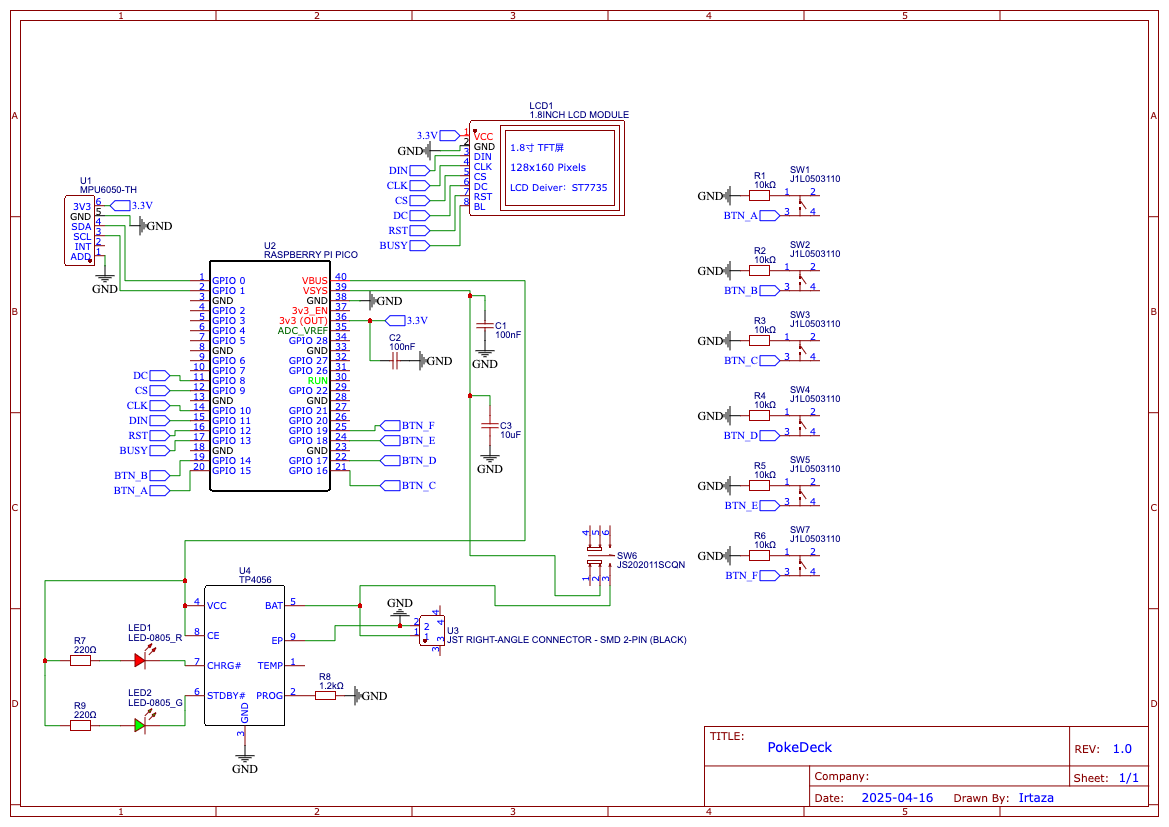

Added an MPU6050 accelerometer to the schematic!
Also tried to resolve duplicate component prefix error in EasyEDA but couldn't even after deleting every component from the schematic :heavy_sob:

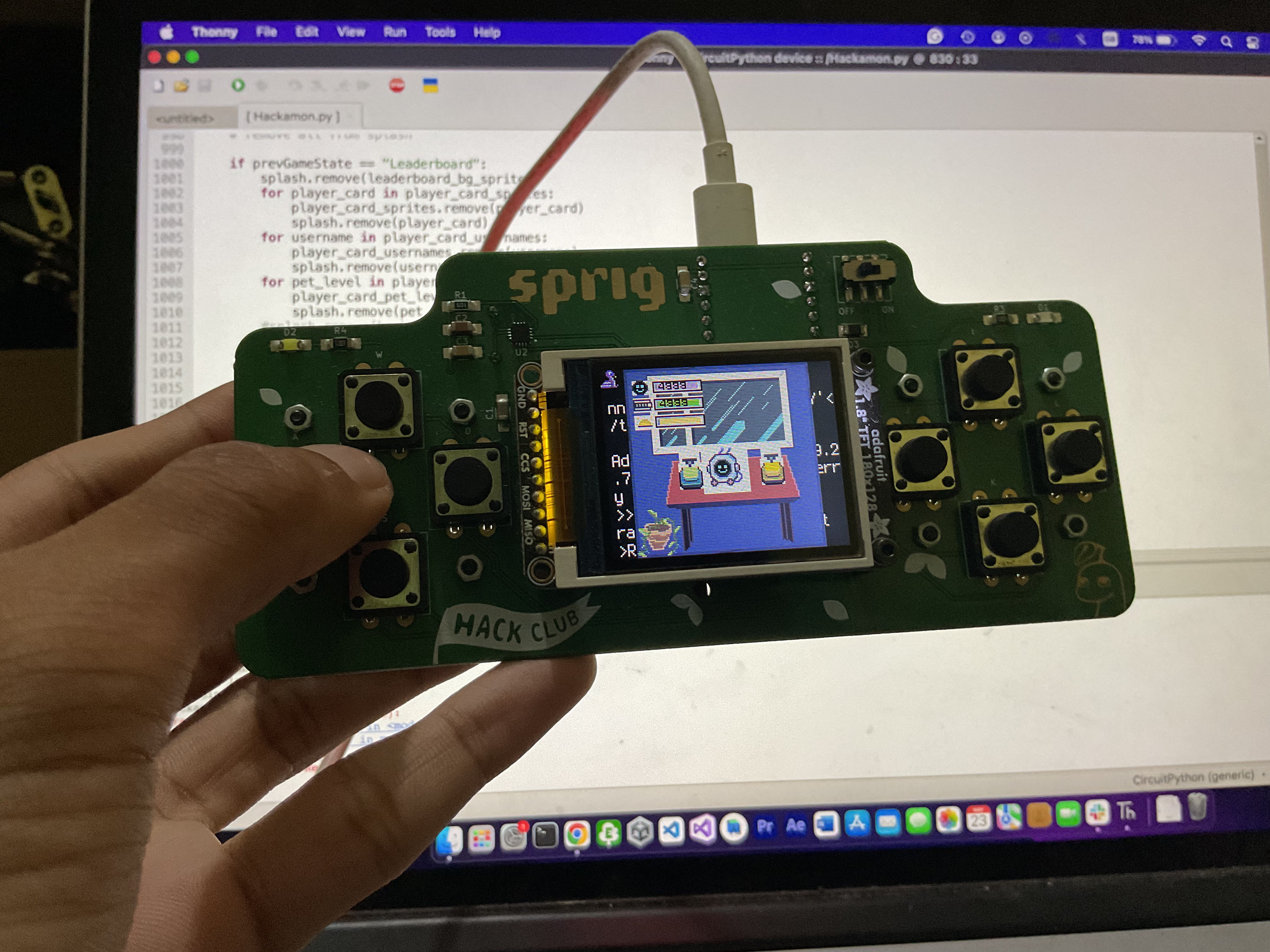

Finally got the Hackamon part to display on the 160x128 TFT7735 LED with Orpheus Pico!!
Neya
10 months ago

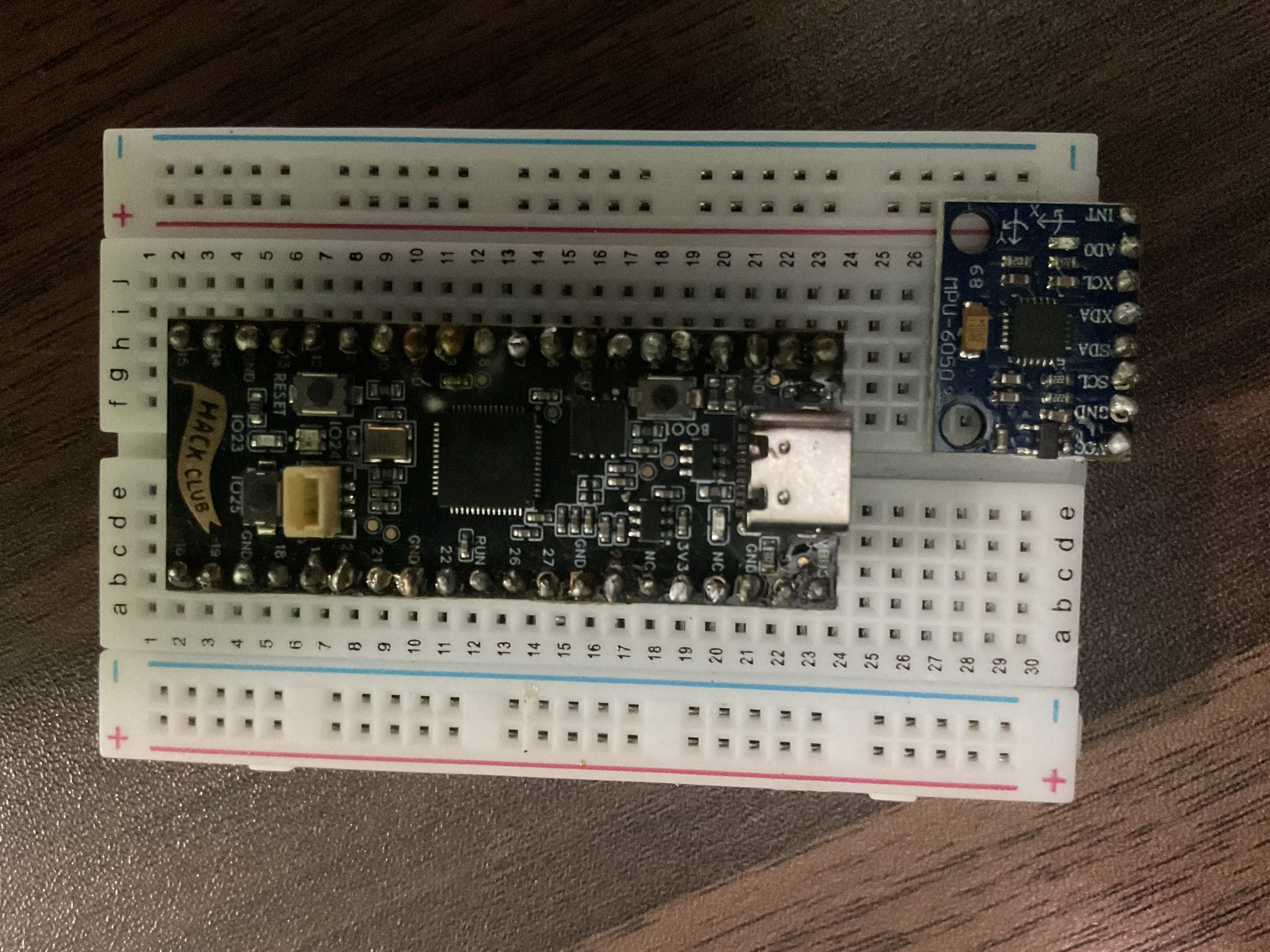

Soldered the headers onto an Orpheus Pico and an MPU-3050 module!
First time soldering, so the results were not so good... but hopefully it will work!
It wouldn’t let me add an attachment, so I hosted it on a CDN instead:
https://sleeping.wtf/FMiBWxVTPS4WxQsLrChvq.mp4
