Raspberry Pi Tinker HAT

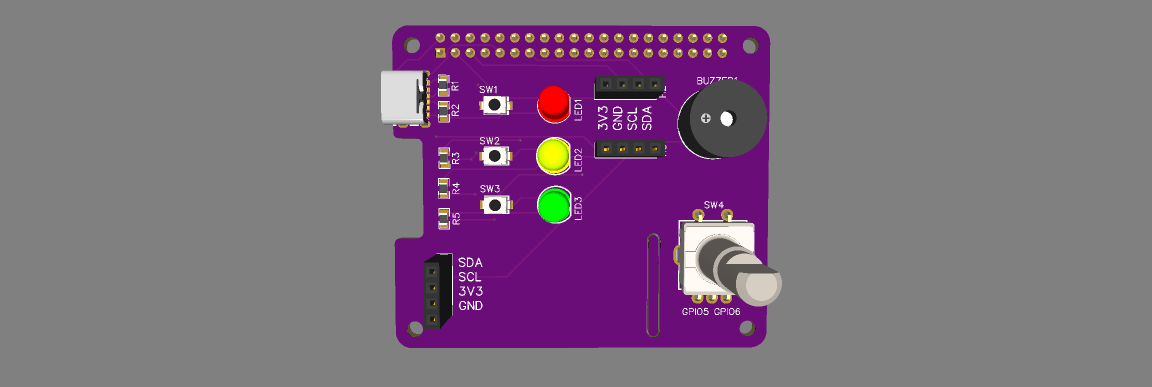

A Raspberry Pi HAT with LEDs, Buzzer, Buttons, rotay encoder, usb-c power input, i2c slots etc...
Followers
cskartikey
Check their project out: The Journey
Lawri
Check their project out: FuelHound
Neon
Check their projects out: Hacker news checker, Market , Artophage, Slack - Zeon
Tetie
Check their project out: babble (database)
yessa
Check their project out: starter pack
Dheeraj S
Check their projects out: Fortune Flipper, My portfolio
StrawberryPuding
Check their project out: Terminal plotter
m5kro
Check their project out: HTML Tools
Hashim
Check their project out: 3D Portfolio
Ship Your Project
HOLD UP
By shipping your project, you're marking it as complete and it'll enter matchmaking. However, you will NOT be able to edit it anymore.
Timeline

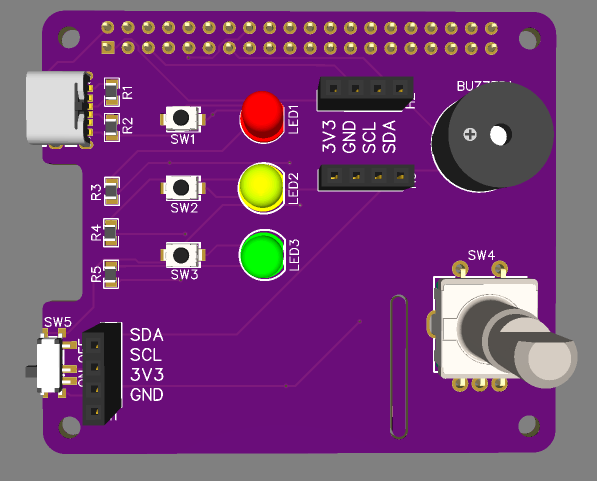

Added a power switch for the OLED/i2c socket
Cleaned up the silkscreen
Ready to be shipped!

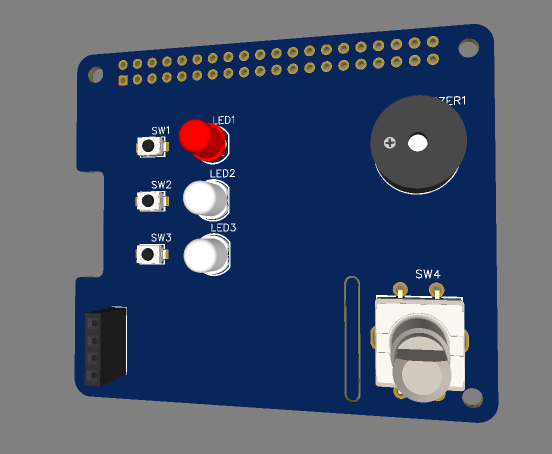

Added the model for the USB-C port
Fixed the colour of the LEDs
yessa
12 months ago
looks awesome!

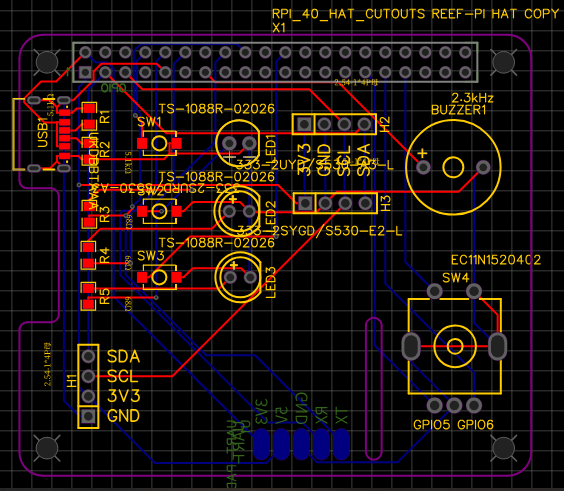

redid the traces and added a 5v pad

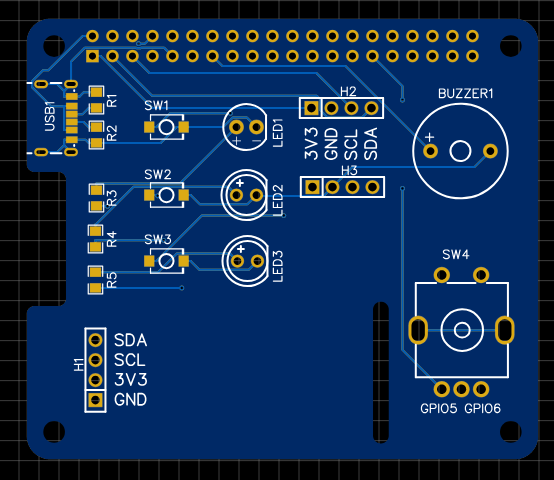

I learned to draw and added some testing pads and uart pads
btw the timer for some reason didnt stop when i close the page

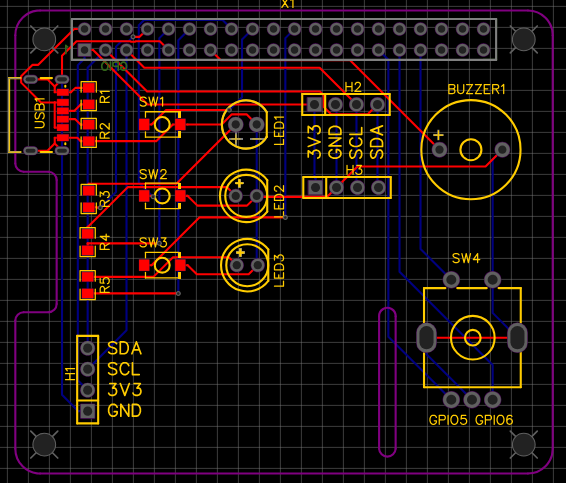

fixed the wiring mistake where it goes over the slot for camera cable
Wired it all up and added the missing resistors for the LEDs
Added

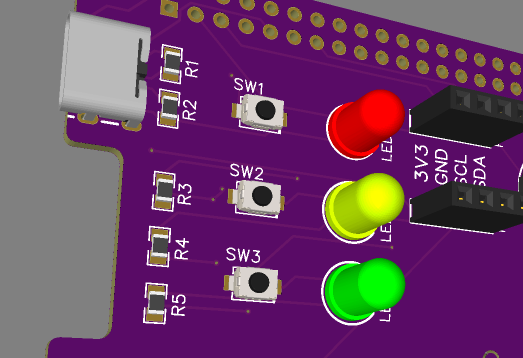

- USBC Power input (5v), no pd controller
- 2x i2c socket
- PCB silkscreen gpio number for components
krunch
12 months ago
might not have enough space
CT5
12 months ago

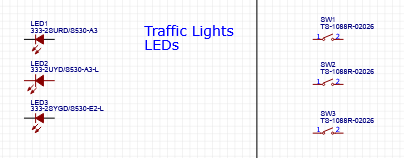

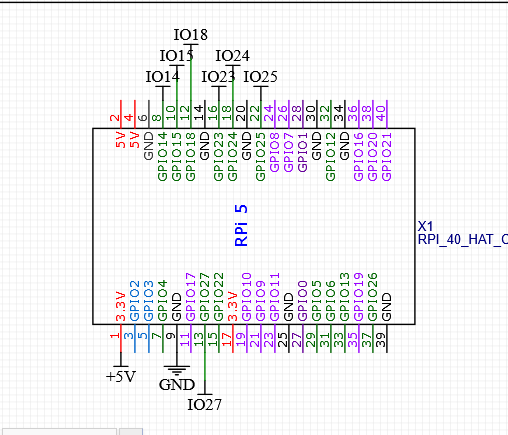

cleaned up the schematics and planned the pcb layout, i tried to make the i2c socket cross compatible with 0.91 and 0.96 oled displays but it only work with some that have the same pinout

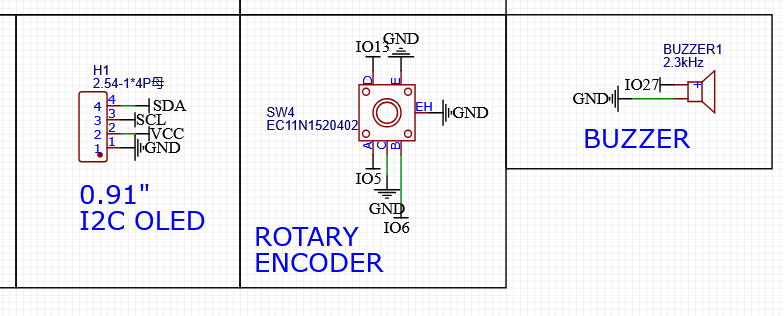

added buzzer, a display, and rotary encoder

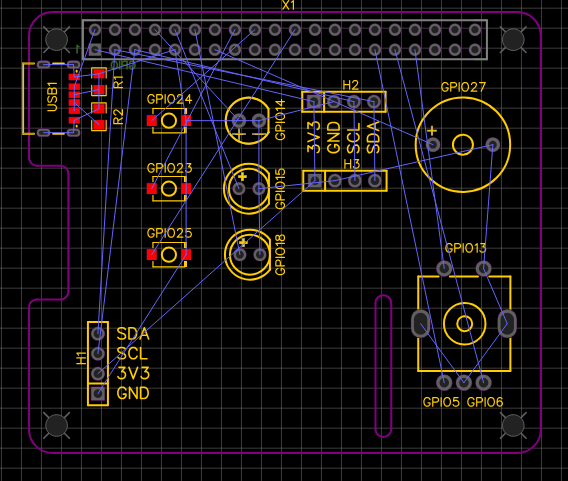

fixed the nets

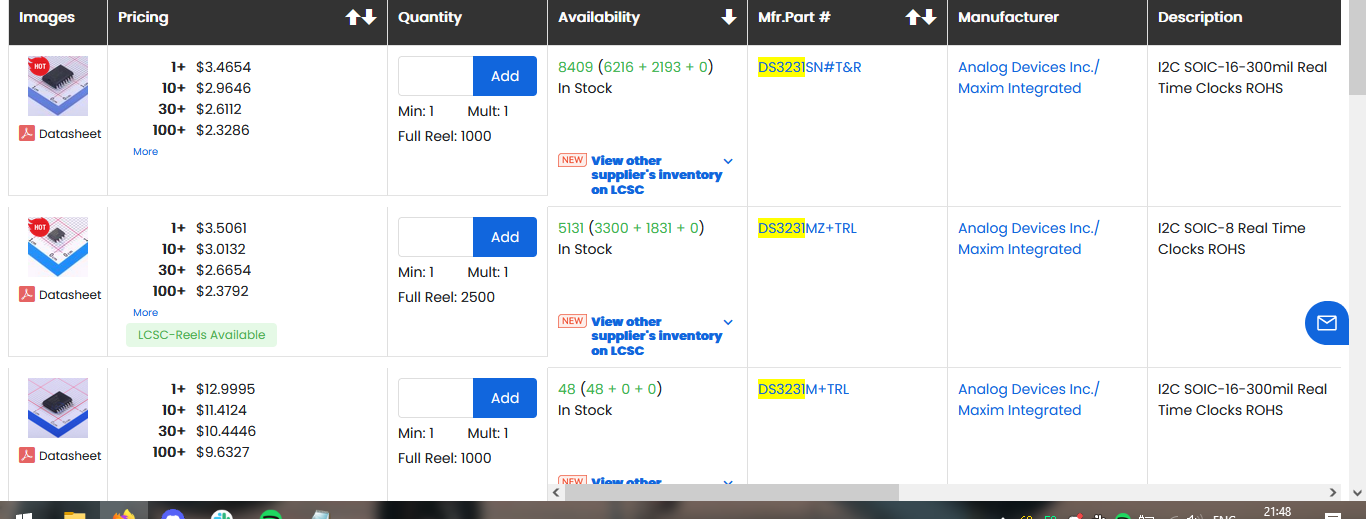

looking through the options for RTC chips!
Spent quite a while looking for components, added 3 leds, and switches
Might add a few neopixel next time
thanks!
